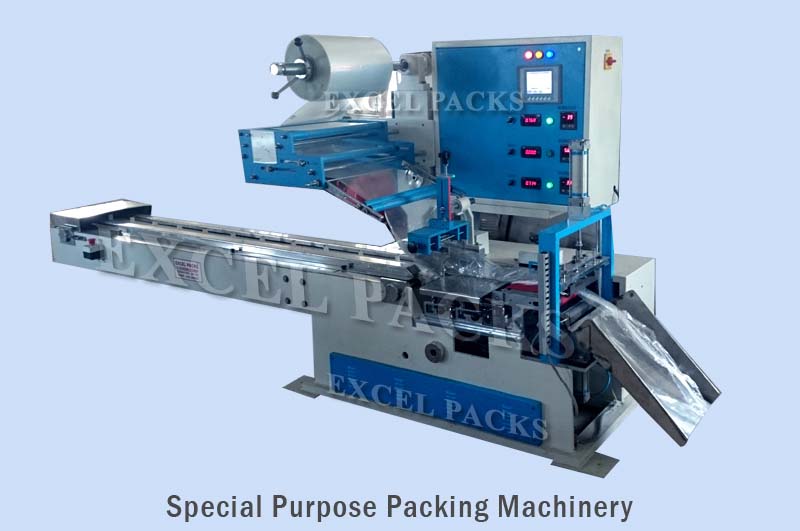

Special Purpose Packing Machines
Special Purpose Packing Machines Can Pack Products
Special purpose Packing machinery can pack Products of round, rectangle, square Shapes solid products with different sizes These machines are extensively used to pack Machinery components, Automobile components, Textile machinery components, pump components, Food industry. Film thickness of minimum 30 microns to 300 microns.
Technical Specifications
-
Conveyor length 2meters
-
Speed 10 to 40 packets per minute, Depending upon the product size
-
Packing Material All Type of laminated (B.O.P.P, LD Poliester, Aluminium Foil etc.,)
-
Packing Size Length : 30mm to 300mm, Width : 30mm to 200mm, Heigh t: 10 mm to 300mm
-
PLC Control System
-
Machine Dimension: length: 3700mm, width: 1200mm, height: 1800mm
-
Weight approx 1000kg
Features
-
Cantilever construction that provides for easy cleaning and maintenance, with easy access to mechanical and electrical components
-
Left to right operating direction
-
Pneumatic type end sealing jaws
-
In feed conveyor 2000mm long
-
Adjustable film folding box
-
The LCD Display and numeric keyboard, provides ease in setting machine parameters, it displays operational and error messages
-
The control allows data storage for up to 15 different machine set-ups
